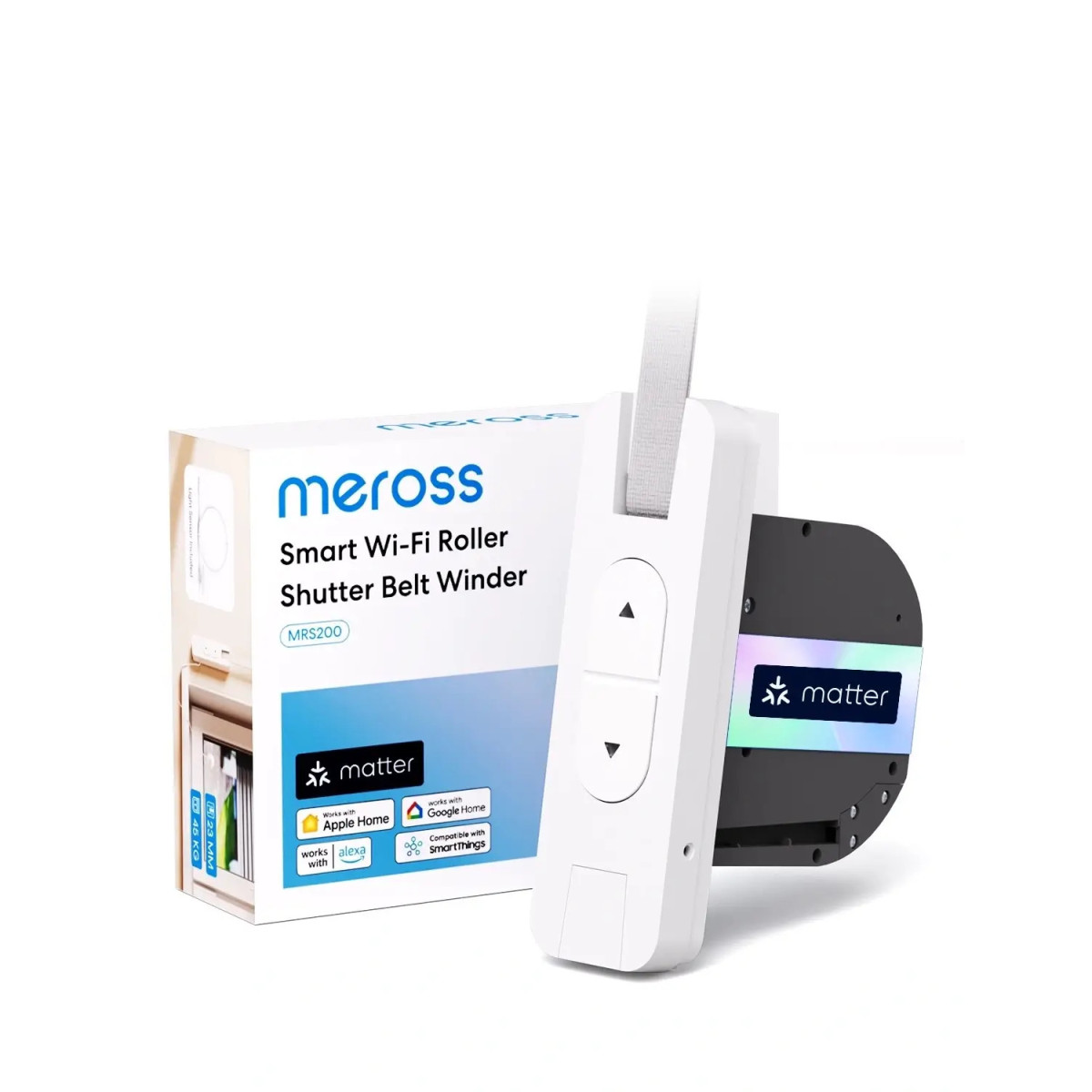

Meross Matter Smart Wi-Fi Roller Shutter Belt Winder, MRS200MA

Meross Matter Smart Wi-Fi Roller Shutter Belt Winder, MRS200MA

Meross Matter Smart Wi-Fi Roller Shutter Belt Winder, MRS200MA

AQARA Shutter Switch H2 EU Kit (DS-K02D) – Zigbee and Thread Shutter Switch

SONOFF MINI-RBS Wi-Fi Smart Roller Shutter Switch

1 Review

The Meross Matter Smart Wi-Fi Roller Shutter Belt Winder (MRS200MA) offers seamless integration and automation for your shutters with Matter support. Enjoy enhanced comfort, safety, and energy efficiency in your smart home.

Supports Apple Home, Google Home, Alexa, and SmartThings via Matter

Automatic light-based shutter control

Built-in safety sensors and manual motor release

Smart scenes and partial ventilation position

Secure Wi-Fi communication with strong encryption

Meross Matter Smart Wi-Fi Roller Shutter Belt Winder, MRS200MA

Exceptional Security

Meross MRS200MA is the first roller shutter belt winder in the world to support Matter — the new universal standard for smart homes. It brings seamless integration, smart automation, and a high level of security in a single device designed for maximum comfort and home protection.

Key Features:

Matter Compatibility: One of the first belt winders with Matter support, enabling seamless connection to platforms like Apple Home, Google Home, Amazon Alexa, and SmartThings.

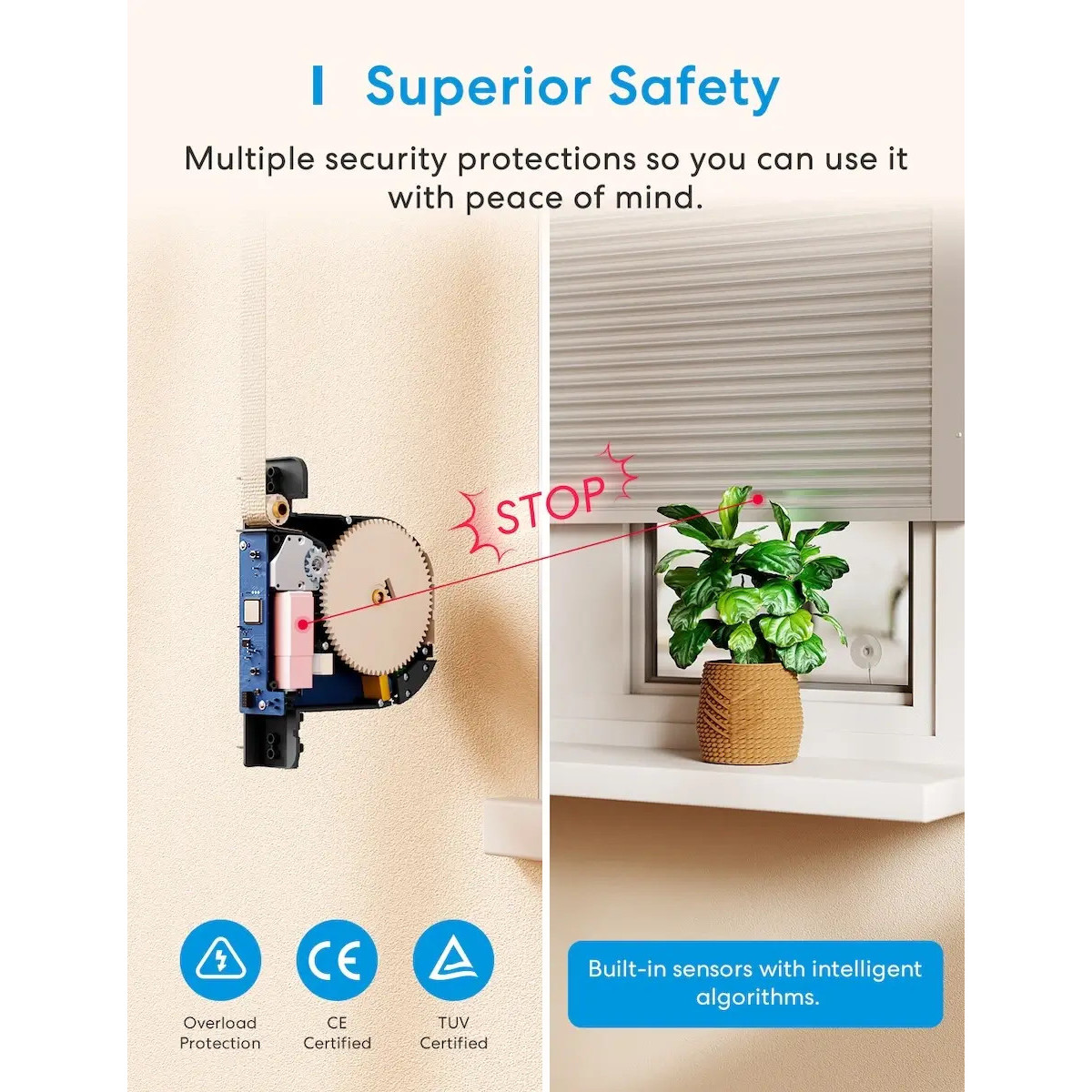

High Security: TUV CE certification, built-in sensors, and smart algorithms.

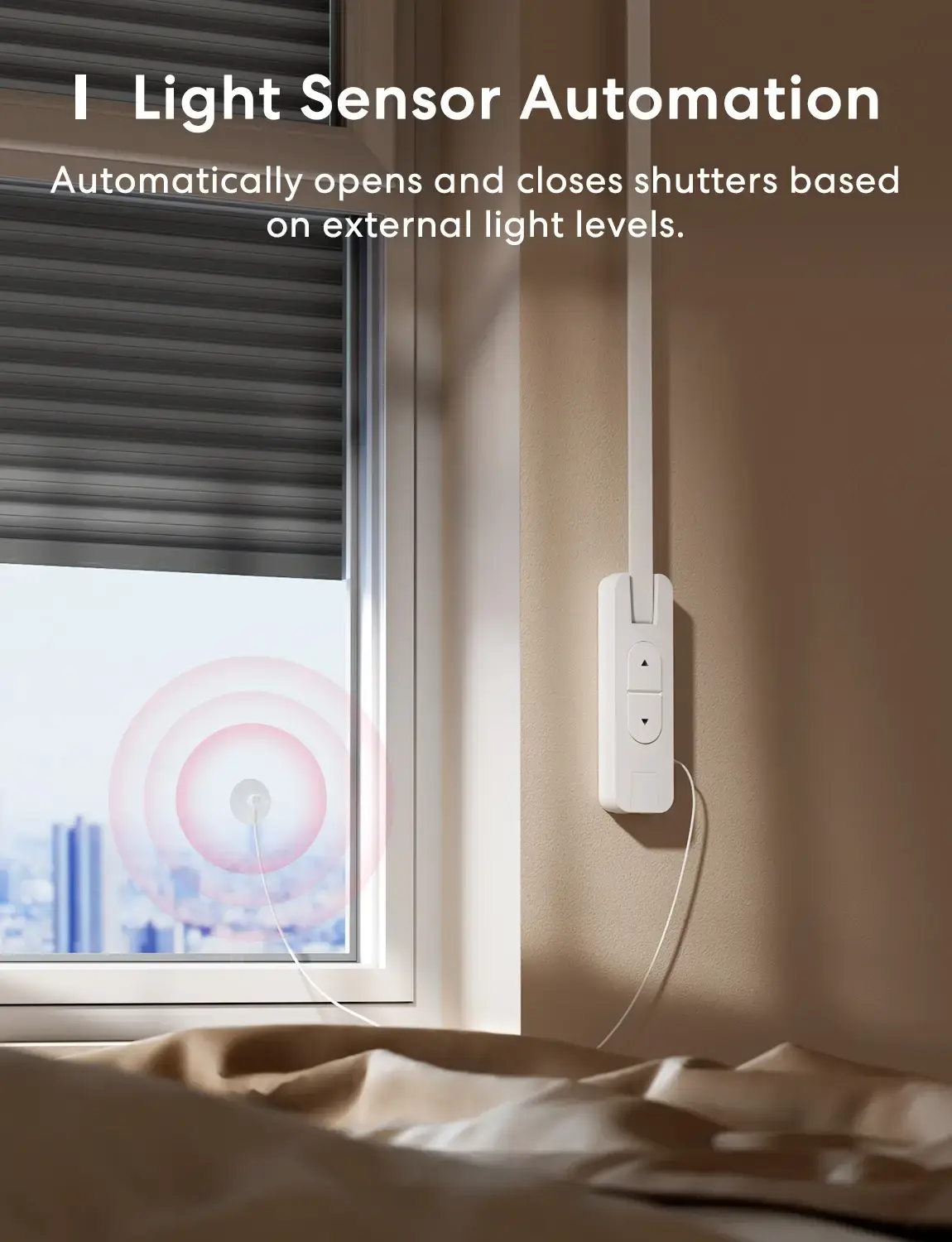

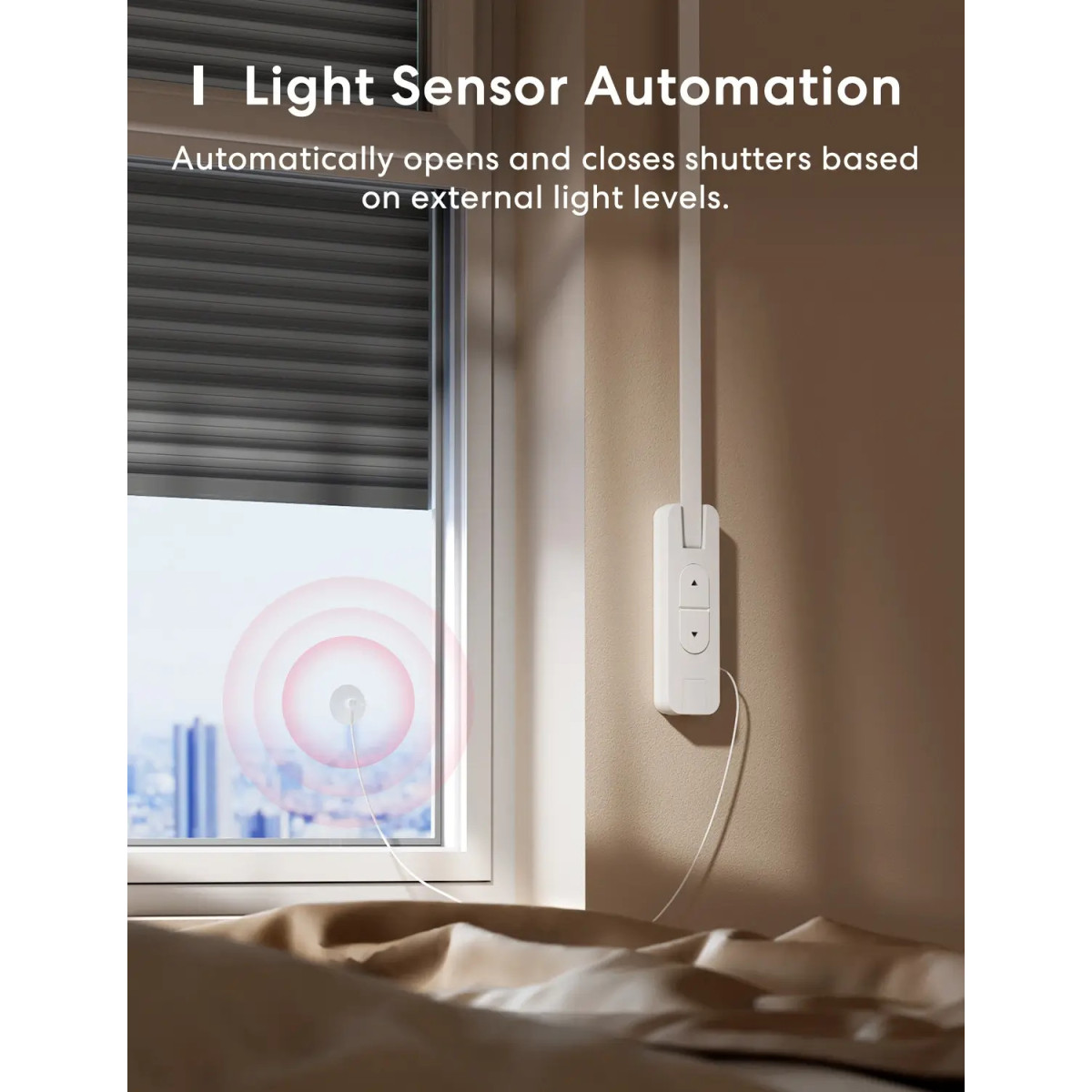

Light-based Automation: Automatic opening and closing of roller shutters based on ambient lighting.

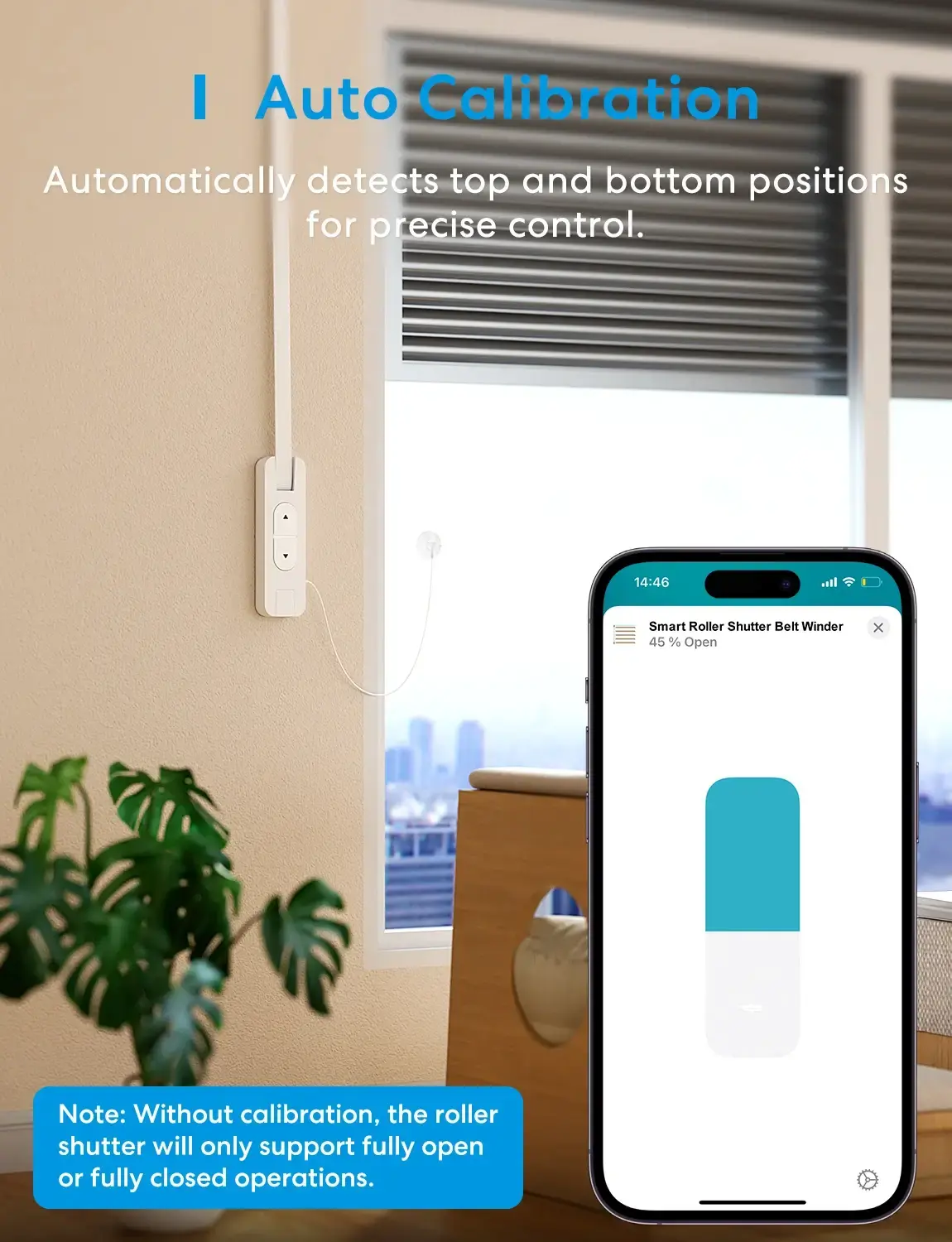

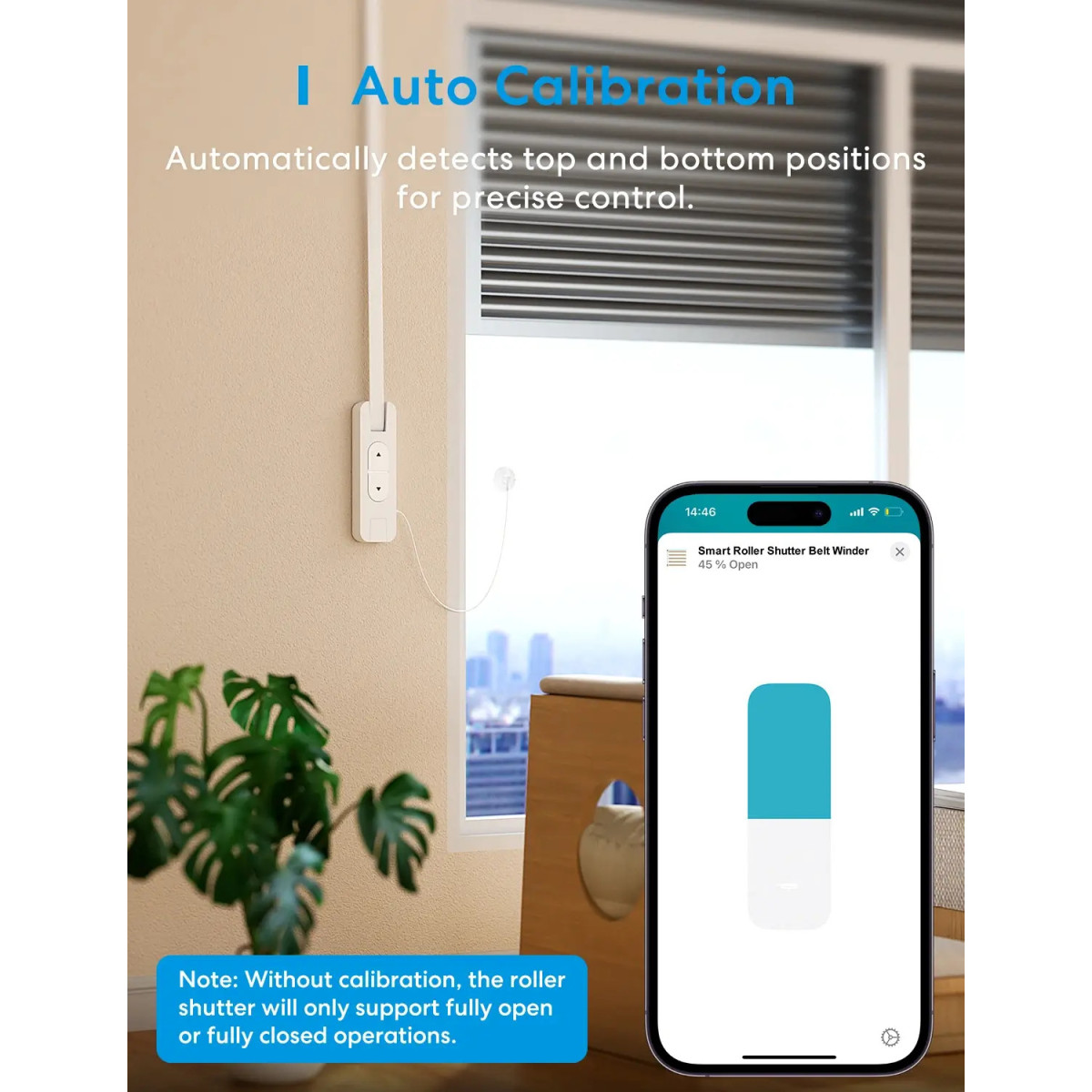

Automatic Calibration: Automatically detects upper and lower limits for precise control. Without calibration, only full open or close is possible.

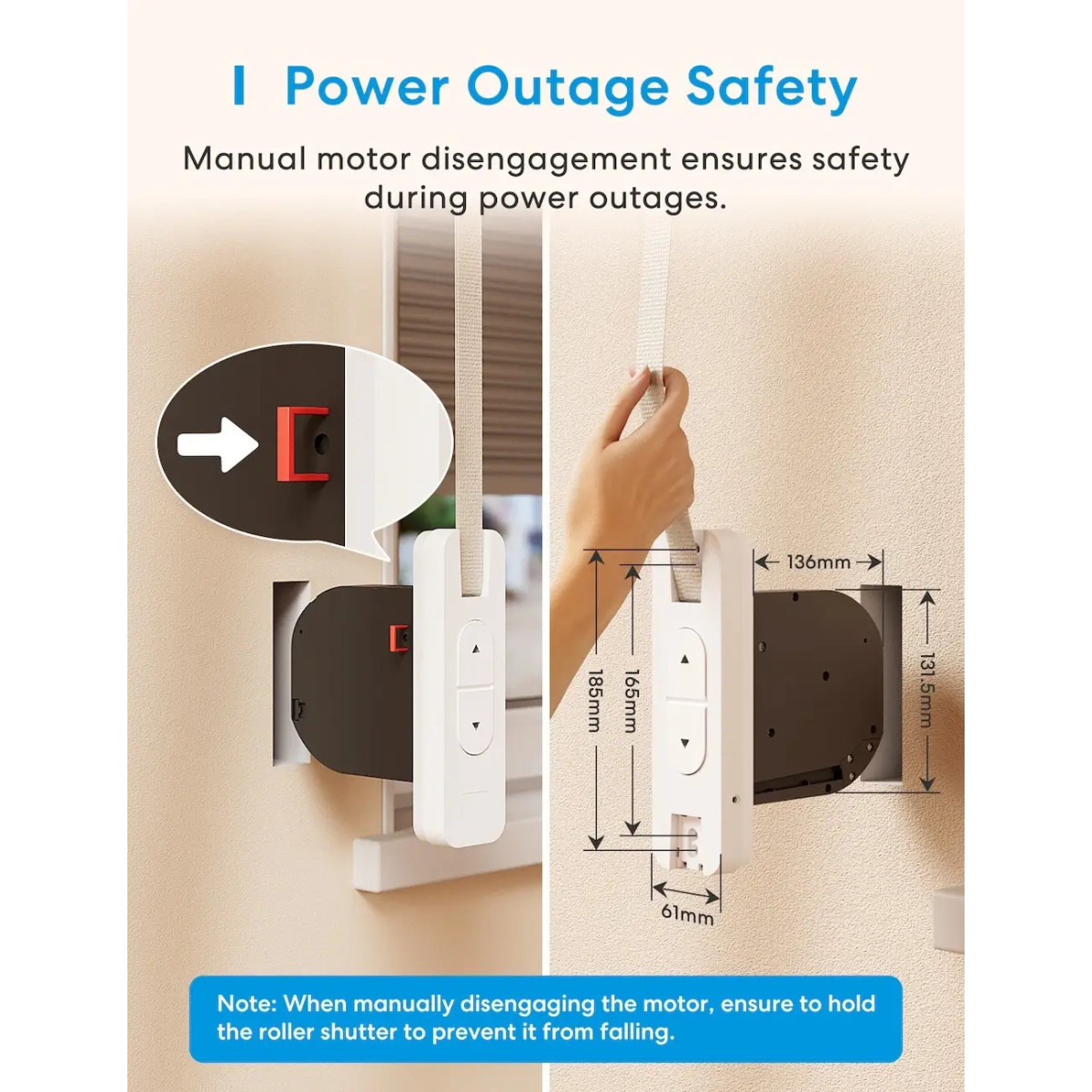

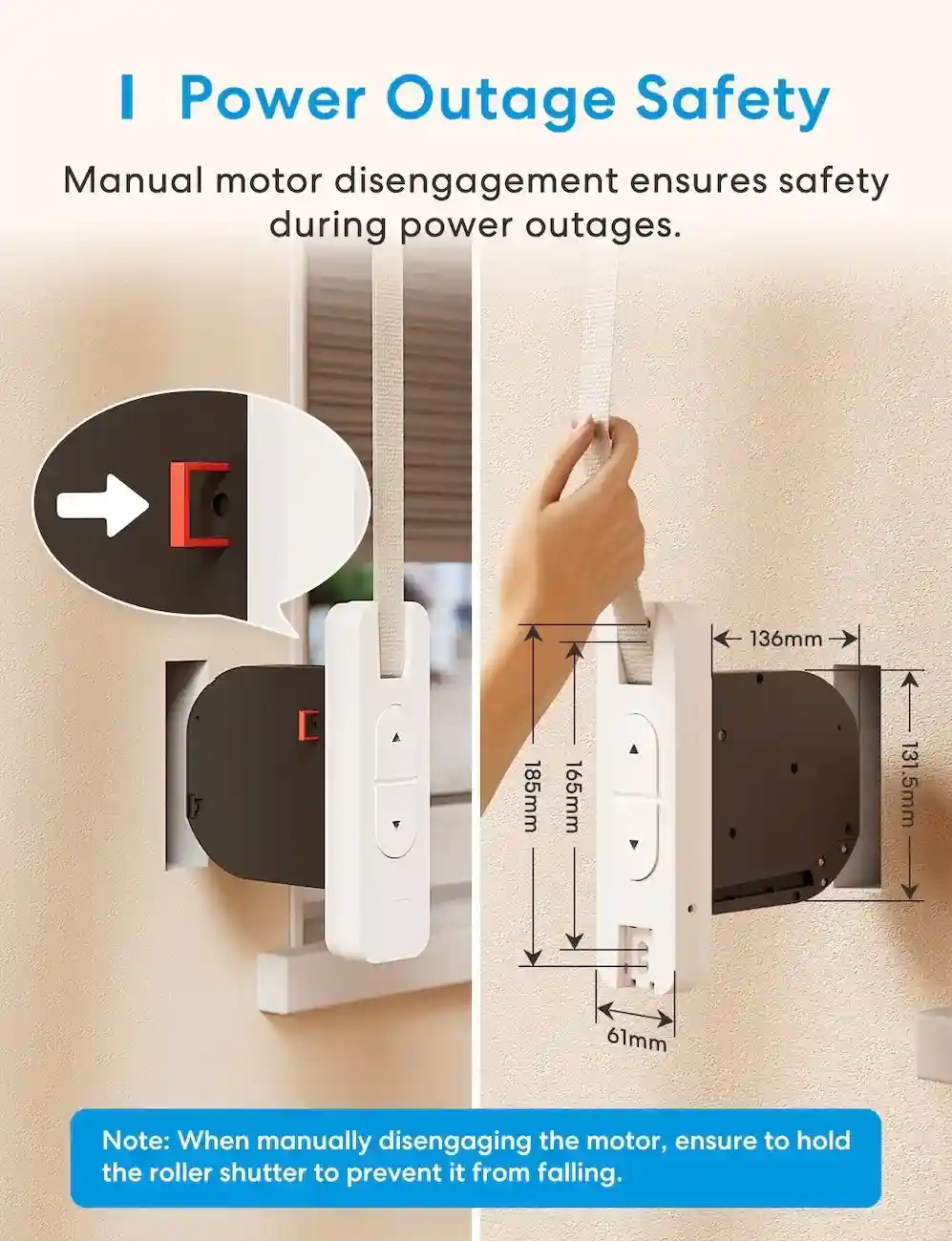

Power Outage Safety: Manual motor disconnection ensures functionality during a power outage.

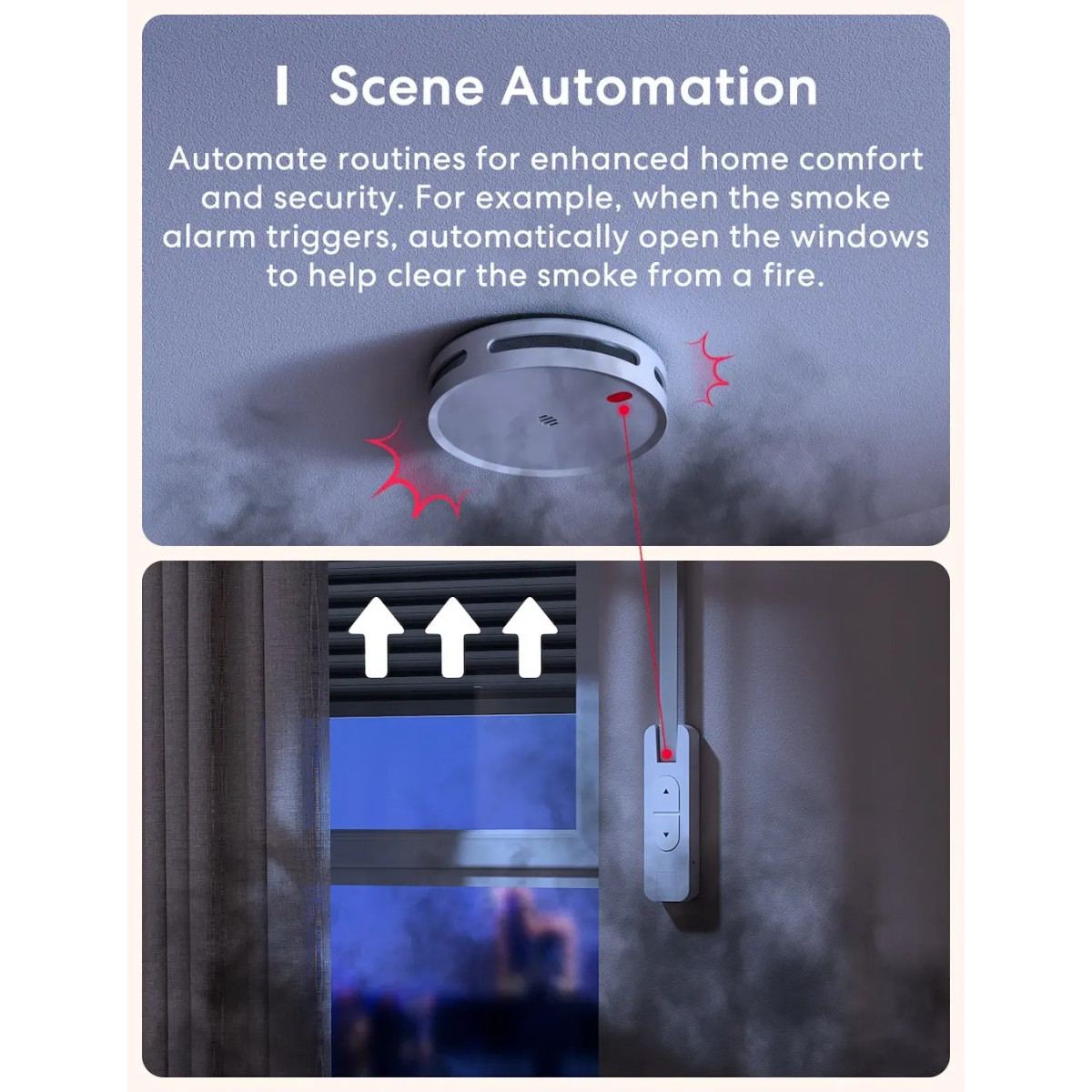

Scene Automations: Set up scenes, such as automatically opening the blinds when a smoke alarm is activated for ventilation.
Ventilation Position: Allows for air circulation while maintaining privacy and security.
Strong Security: Matter provides encrypted communication and advanced security algorithms.
Multi-system Compatibility: Works with multiple platforms simultaneously.
Matter Hub Required: A Matter hub (e.g., Echo Dot, Google Nest Hub, HomePod mini, SmartThings Hub) is required for remote control.

Automatic Calibration - Matter Smart Wi-Fi

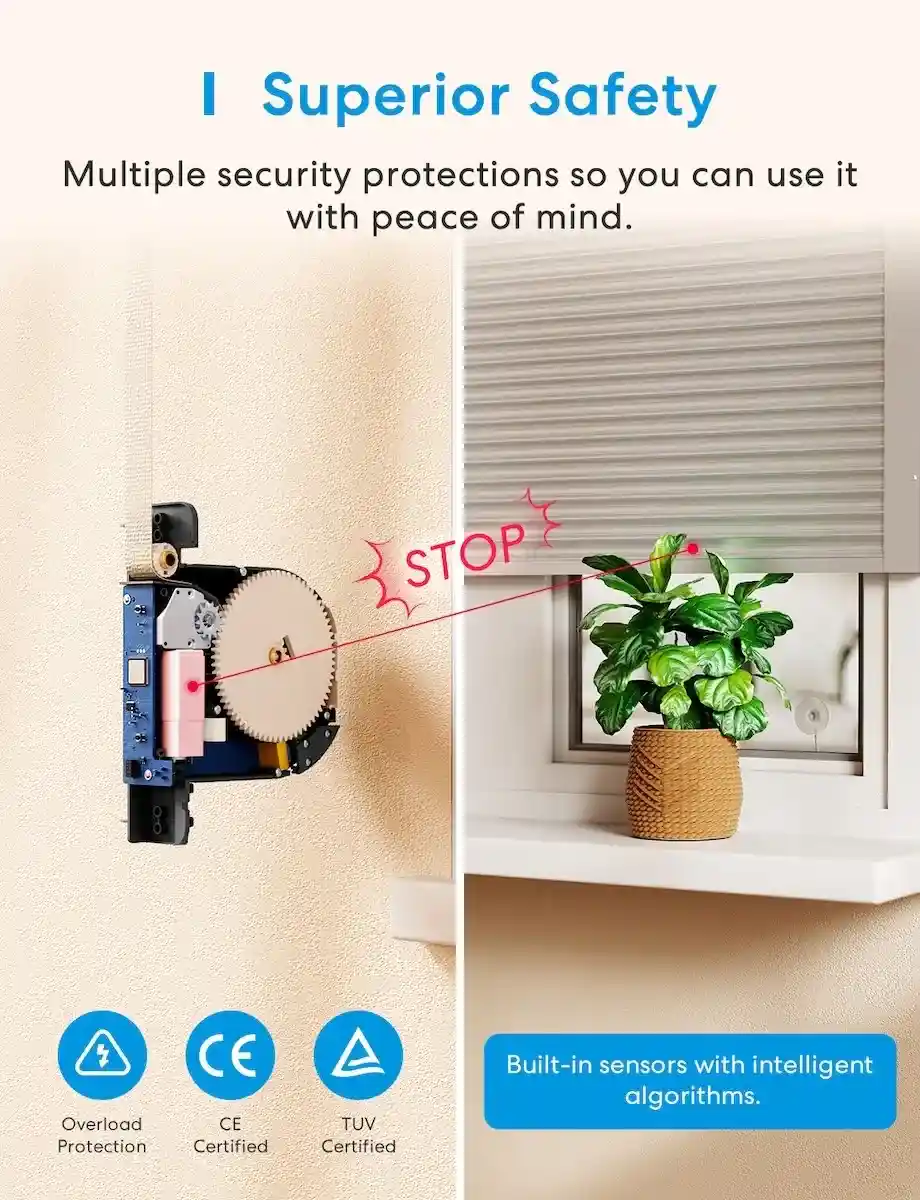

Excellent Security - Meross Matter Smart Wi-Fi

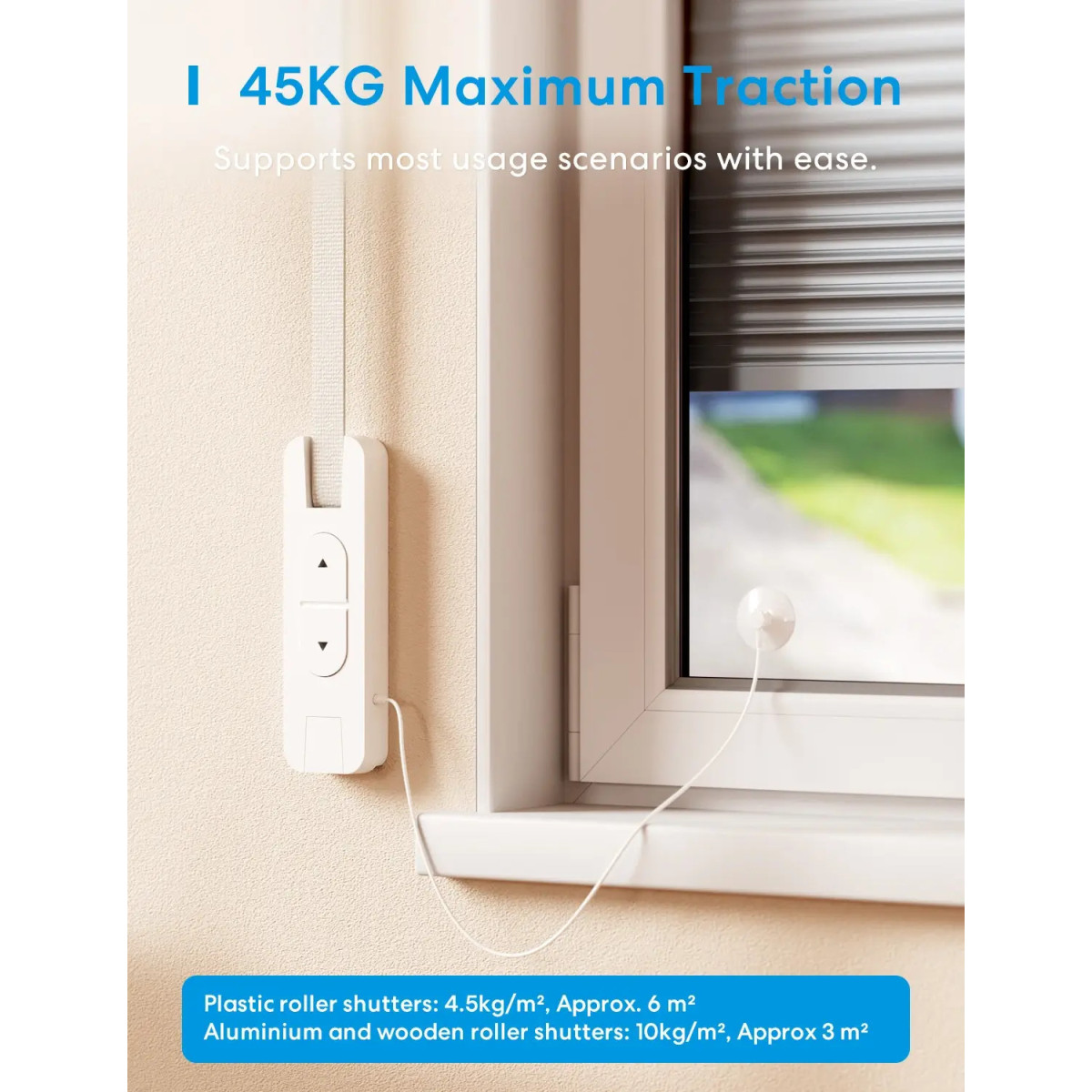

Roller Shutter Area and Weight Limits

Ensure your roller shutters are within the technical limits:

Roller Shutter Type	Weight per m²	Max. Roller Shutter Area
Plastic	4.5 kg/m²	approx. 6 m²
Aluminum or Wood	10 kg/m²	approx. 3 m²

Power Outage Safety - Matter Smart Wi-Fi

Automations with Meross Matter Smart Wi-Fi

Technical Specifications:

Input: 230V~ 50/60Hz
Rated Power: 70W
Standby Power Consumption: < 0.6W
Rated Torque: 10 Nm
Max. Speed: 36 rpm
Max. Runtime: 4 minutes
Noise Level: ≤ 70 dB(A)
Max. Pulling Force: 45 kg
Protection Class: II
Protection Degree: IP20 (for dry indoor use only)
Power Cord Length: 2 m
Light Sensor Cable Length: 1.5 m
Mounting Type: Flush-mounted

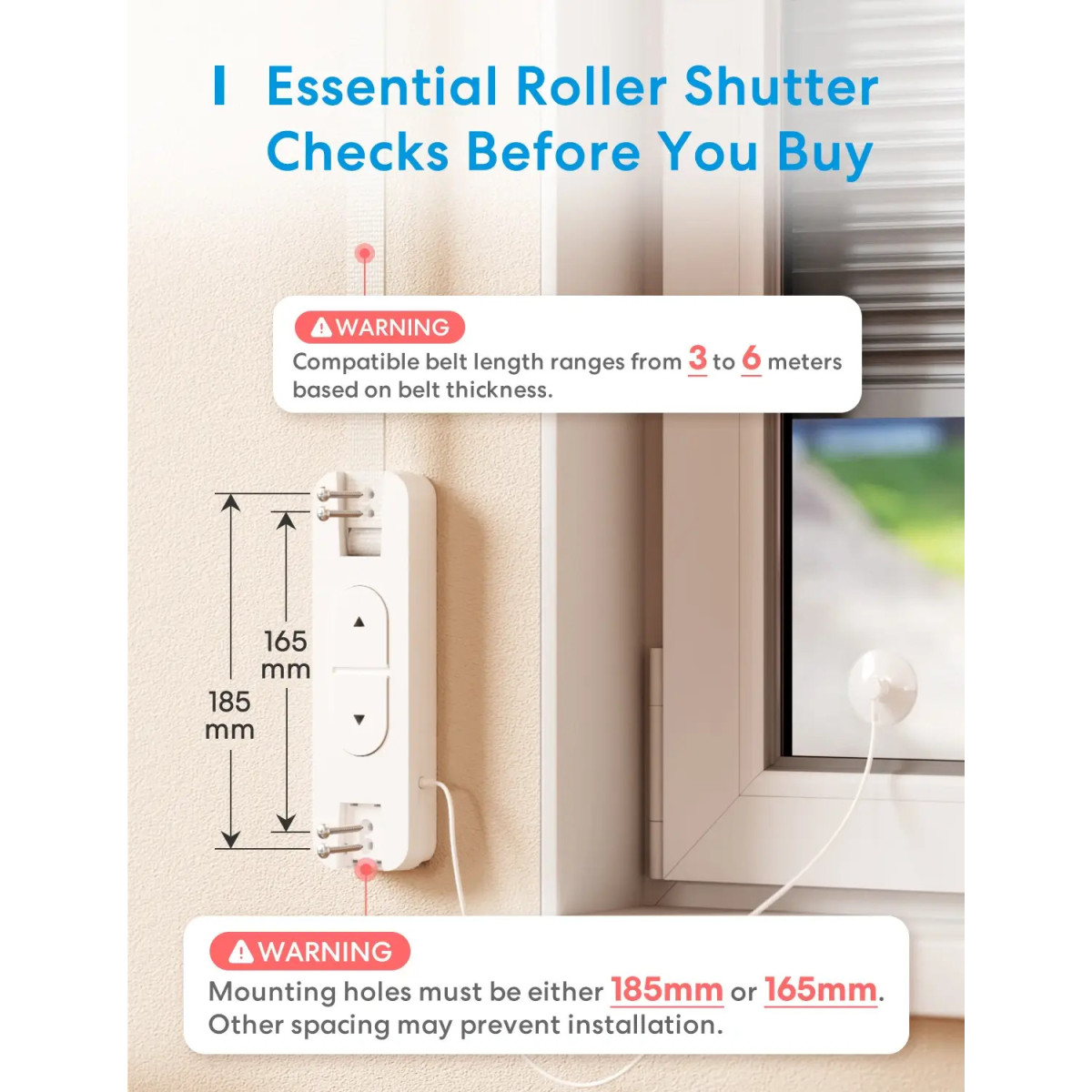

Mounting Hole Spacing: 165 / 185 mm
Dimensions: 61 × 164 × 210 mm (without power cord)
Certificates: CE, RoHS, WEEE
System Requirements: Smartphone with iOS 16.1+ or Android 10.0+, Existing Wi-Fi network (2.4GHz)

Package Contents:

Smart Wi-Fi Roller Shutter Belt Winder x1
Light Sensor (1.5 m) x1
Power Cord (2 m) x1
Disconnection Bracket (pre-installed) x1
Mounting Screws x5
Drum Cover x1
Mounting Hole Cover x1
Power Cord Cover x1
Corner Belt Bracket x1

Wireless Connection and Security

Antenna: Internal
Wi-Fi Standards: IEEE 802.11 b/g/n, 2.4GHz, 1T1R
Security: Supports 64/128-bit WEP, WPA-PSK/WPA2-PSK (does not support enterprise networks)
