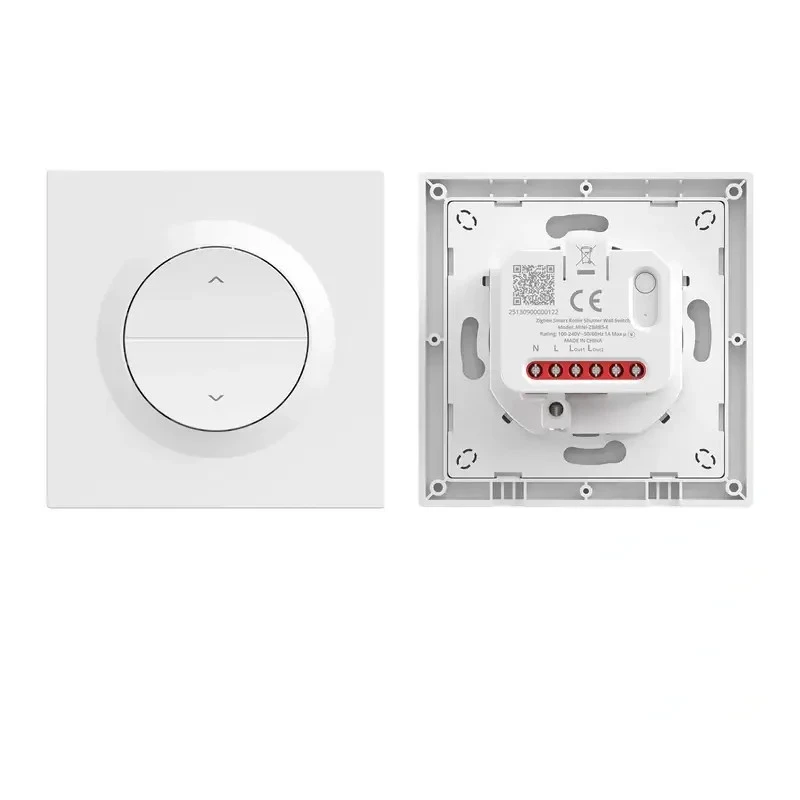

SONOFF MINI-ZBRBS-E Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch

SONOFF MINI-ZBRBS-E Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch

SONOFF MINI-ZBRBS-E Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch

SONOFF MINI-ZBRBS Zigbee Smart Roller Shutter Switch

SONOFF MINI-RBS-E Fusion Series Orb-RBS Matter Over WiFi Smart Roller Shutter Wall Switch

2 Reviews

SONOFF Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch | MINI-ZBRBS-E upgrades electric blinds and curtains with precise app/voice control. This EU wall switch adds percent positioning, fast local scenes, and a stronger Zigbee mesh for reliable daily automations.

Precise percentage control for comfort, light, and privacy

Schedules & timers for hands-free open/close

Direction reverse in software—no rewiring

Works with Home Assistant (ZHA, Zigbee2MQTT); Matter via Zigbee Bridge Ultra + Matter hub (same LAN)

Acts as a Zigbee router to extend signal and stability

100–240 V~ 1 A max; Zigbee 3.0; 86×86×34 mm; requires Zigbee hub

SONOFF Fusion Series Orb-ZBRBS Zigbee Smart Roller Shutter Wall Switch | MINI-ZBRBS-E — Simple and Precise Shading

SONOFF MINI-ZBRBS-E, Fusion Orb-ZBRBS Series

Pro Automation, No Rewiring

Upgrade electric roller shutters and curtain motors with precise positioning and reliable Zigbee performance.

The smart Blind and Roller Shutter Switch Orb-ZBRBS (MINI-ZBRBS-E) offers percentage settings, time schedules, and instant local scenes—while also strengthening your Zigbee network for faster and more stable responses.

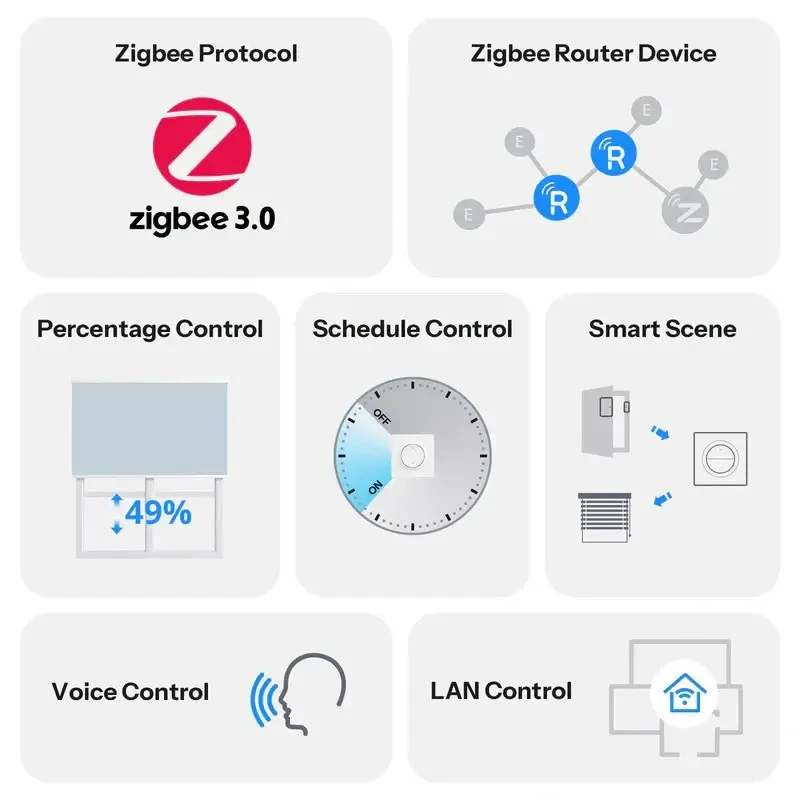

SONOFF MINI-ZBRBS-E Features:

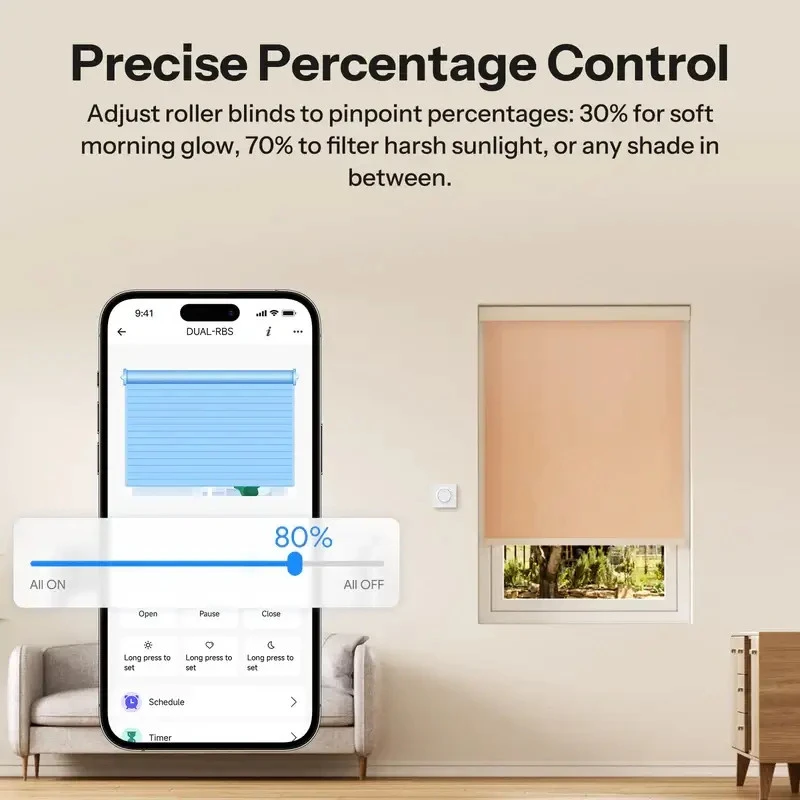

Precise Percentages: Set the exact opening level (e.g., 30%, 70%) for comfort, privacy, and energy savings.
Scheduled Control: Automate morning opening and evening closing using timers and routines.
Direction Reversal Without Wiring: Correct swapped wires via software with a single switch.
Local and Fast: Scenes run on the Zigbee hub with minimal latency—they work even during an internet outage.

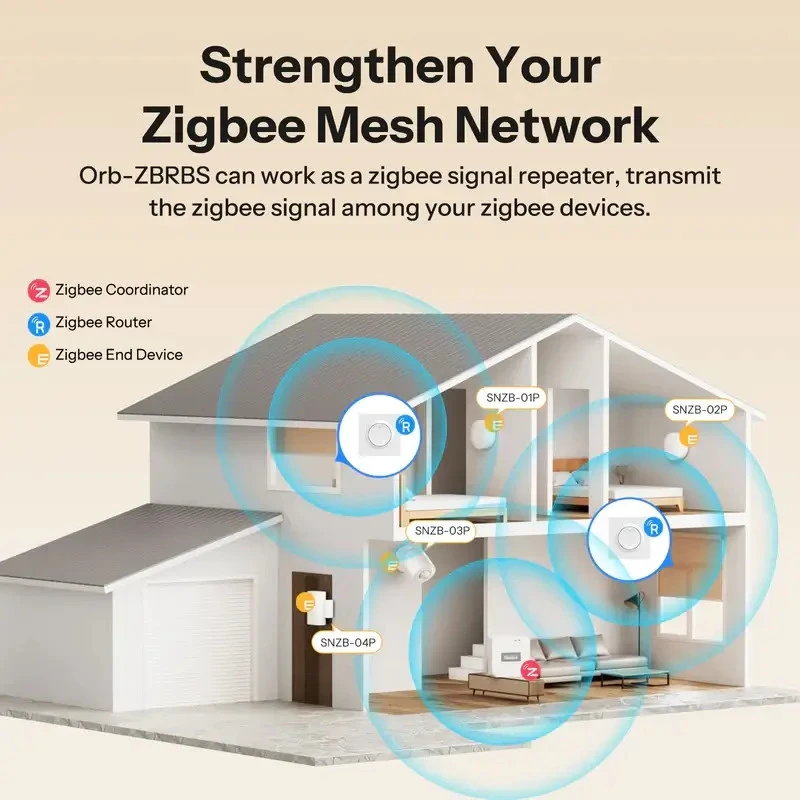

Zigbee Signal Amplifier: Works as a Zigbee router, extending network coverage and stability.
Open Ecosystem: Integration with Home Assistant via ZHA or Zigbee2MQTT; Matter available via Zigbee Bridge Ultra + Matter hub in the same LAN.

Smart Control Without Complexity

Pair with a Zigbee hub, perform motor travel calibration once, and create scenes or schedules based on daily habits. Add voice control via your preferred platform.

Installation Instructions

Fits standard EU 86×86 mm wall boxes; for indoor use.

Requires a compatible Zigbee hub (or a Zigbee USB dongle for Z2M/ZHA).

Use copper conductors only; comply with local standards.

SONOFF MINI-ZBRBS-E Technical Specifications:

Name: SONOFF Orb-ZBRBS (Fusion Series)
Model: MINI-ZBRBS-E
Type: Zigbee Smart Roller Shutter Wall Switch
MCU: EFR32MG21
Ratings: 100–240 V~ 50/60 Hz, 1 A max (motor)
Wireless: Zigbee 3.0 (Router function)
Dimensions / Weight: 86 × 86 × 34 mm; 84.1 g
Material / Color: PC; White
Recommended Wiring: 18–14 AWG SOL/STR, Copper only
Environment: −10 °C to 40 °C; 5–95 % RH, non-condensing
Certification: CE / RoHS
Requirements: Zigbee hub; optional Matter via Zigbee Bridge Ultra + Matter hub (same LAN)
