Aqara Roller Shade Driver E1 is a retrofit roller shade controller that does not require a complicated installation and can work with your existing Roller Shade by operating the beaded cord.

Zigbee 3.0

4 Adapters for Different Types of Beaded Cords

USB Type-C for Charging or Constant Power Supply

2-Month Battery Life

User-Defined Opening/Closing

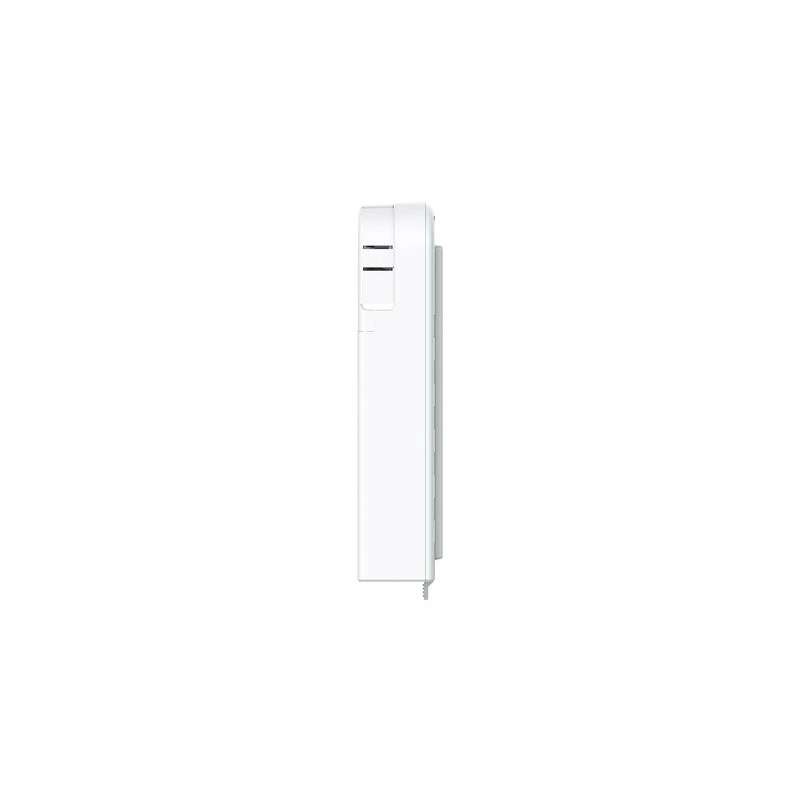

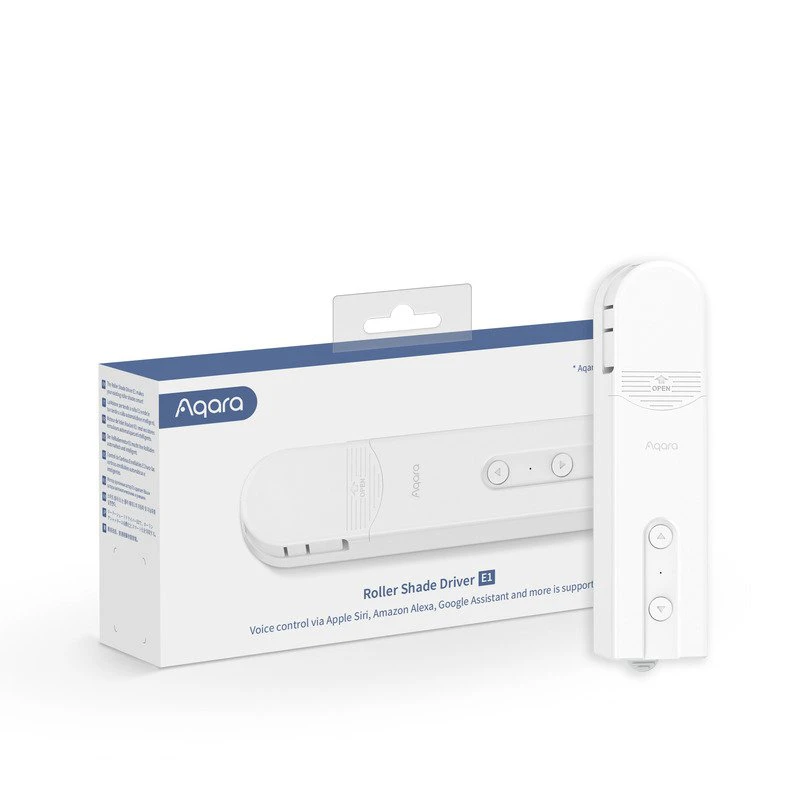

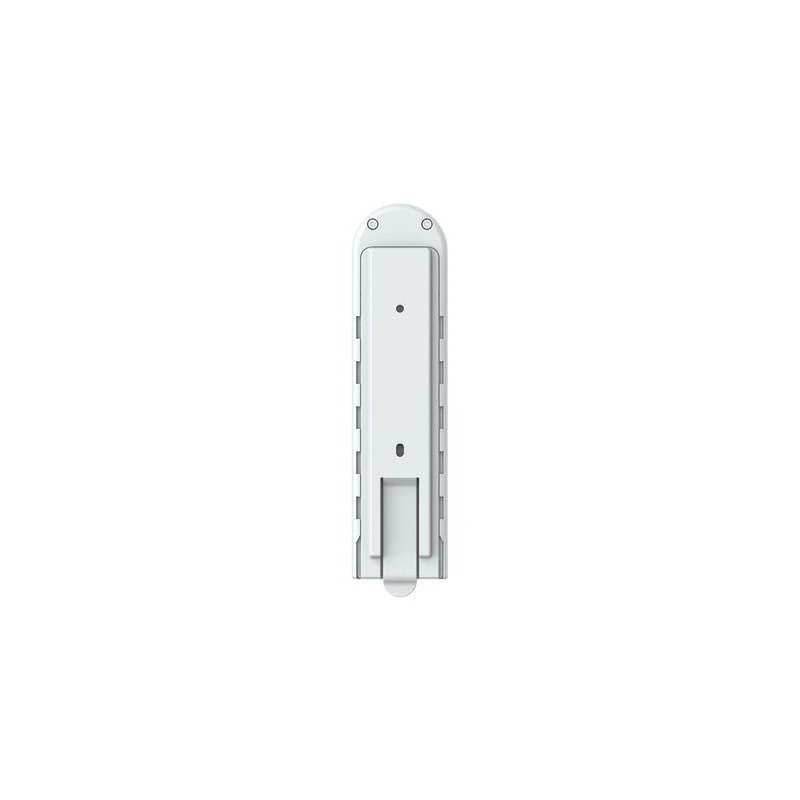

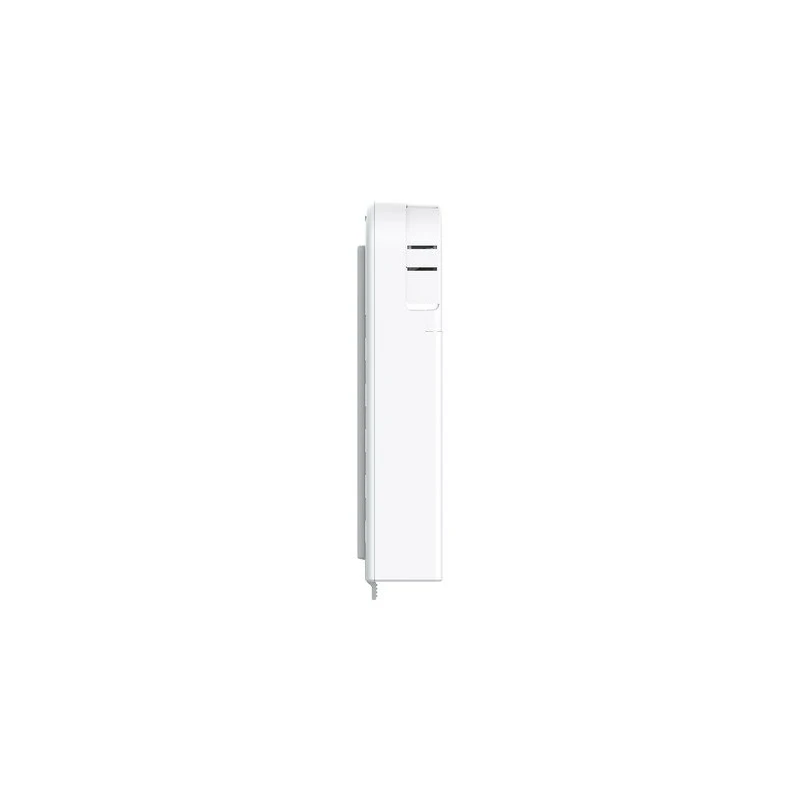

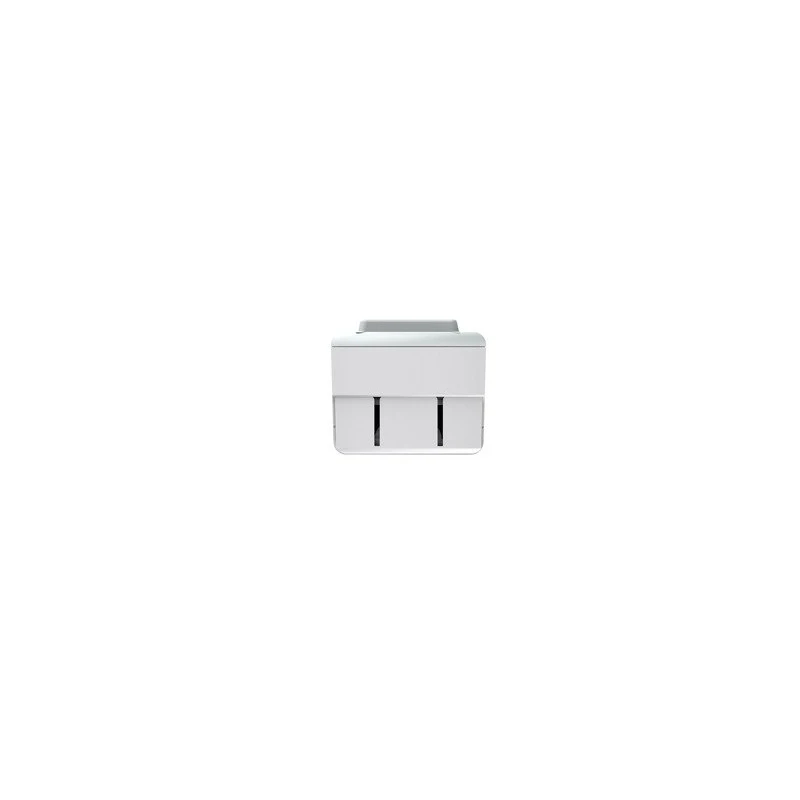

AQARA Roller Shade Driver E1 (RSD-M01)

Get rid of tedious daily adjustment of roller blinds.

Aqara Roller Shade Driver E1 is an easily installable blind controller that doesn't require complex installation and is compatible with existing blinds via cord or rope. It doesn't need special cables, works either on built-in battery, or is powered via the included USB-C cable.

Note 1: This device is EU version, model: RSD-M01.
Note 2: This device can be used with Aqara Hub control unit, which can work with Aqara Home app applications (Android or iOS).

Simple Installation

Just screw the device to the wall, attach the adapter, insert the shade's bead chain and it will be ready for connection.

Zigbee 3.0 Protocol

Discover the advantages of the fastest, most stable and most energy-efficient smart home technology. Zigbee offers higher stability and compatibility (standardized protocol), longer support and extended features.

Universal Compatibility

Compatible with most popular ecosystems and can be controlled by voice. Supported are HomeKit, Alexa, Google, IFTTT, Alice, Marusya. (Requires AQARA Hub).

Simple Installation - AQARA Roller Shade Driver E1

User-defined Opening/Closing

The user will be able to preset the amount of desired opening/closing percentages and easily switch between them.

2-Month Battery Life

Thanks to Aqara's battery-saving technologies, the device achieves excellent battery life, so you don't have to think about charging every few weeks. The lifespan is designed to last with daily rolling of a 1.8 m x 1.8 m blind.

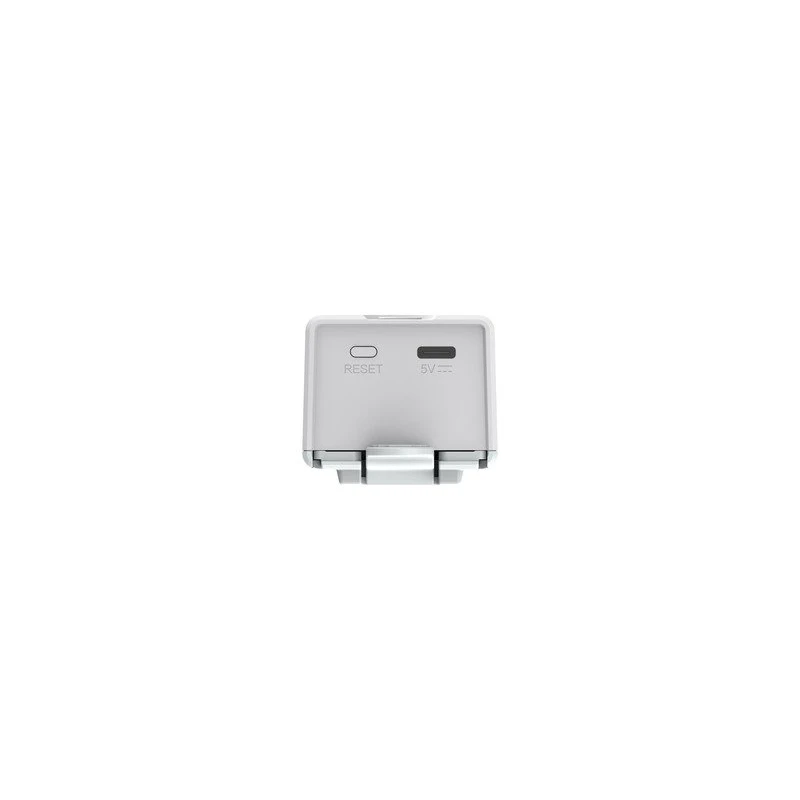

USB Type-C for Charging or Constant Power

You can choose from two installation modes: wired and wireless. The most modern and universal Type-C port serves for continuous charging or powering the device.

One-Button Control

Thanks to the Aqara Home app, you can fully control your roller shade with a single button press, such as the Aqara Mini Switch.

Smart Home Automation

Connect the device to the Aqara Home app and you'll be able to forget about manual device control: after configuring automations, it will work by itself!

4 Adapters for Different Types of Bead Chains

Most blind and roller shade systems with bead chains are supported thanks to the variety of included adapters.

4 Adapters - AQARA Roller Shade Driver E1

Specifications:

Model: RSD-M01
Wireless Protocol: Zigbee 3.0 IEEE 802.15.4
Dimensions: 42 × 37 × 165 mm (1.69 × 1.52 × 6.89 inches)
Operating Temperature: -10°C ~ 55℃ (14°F ~ 131°F)
Operating Humidity: 0-95% RH, non-condensing
Battery Type: Lithium battery (non-replaceable)
Rated Input: 5V 1A
Total Power Consumption: 5W
Standby Time: Two months (based on controlling a 1.8 m x 1.8 m roller shade up and down once daily)
Standard: GB/T 12350-2009
